AISI-316 · Series 0910 · Industrial

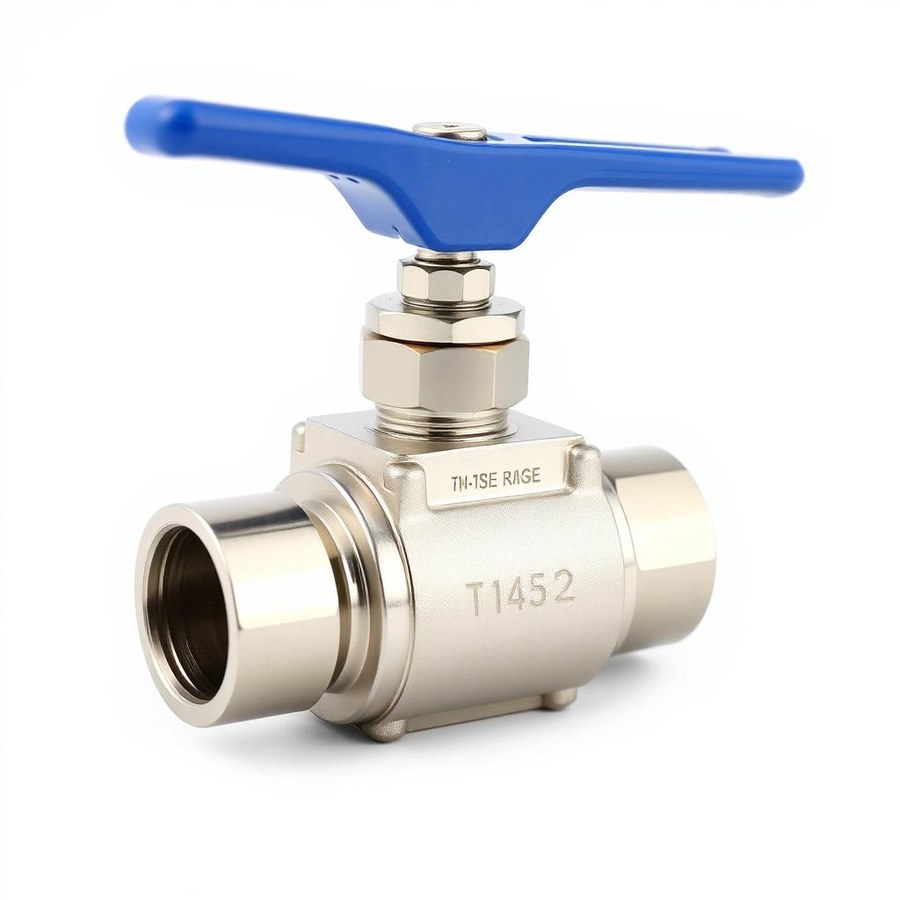

SS Ball Valve Two-Piece Full Bore 1"

SKU 0910025 ★ 4.9 (NEW · MT 2026 catalogue)
AED 268.50
≈ €62.56
incl. 5% VAT · per unit · volume discounts at 10/50/100+ units
In stock at JLT · Ships today before 15:00 GST · Free UAE delivery over AED 500
Select size UNIQUE TO MT
Quantity:
CE / DVGW / WRAS
Manufactured in Barcelona
30-day returns

Technical specifications

Body material
AISI-316 / CF8M stainless steel (cast)
Ball & stem
AISI-316 stainless steel
Seat
PTFE (Teflon)
Pressure rating
PN 63 · 1000 psi WOG
Operating temperature
−20 °C to +180 °C
Connection
BSP (parallel) · NPT (tapered) on request
Bore type
Full bore (DN matches nominal pipe size)
Operation
Manual (lever handle) · gear / pneumatic on request
Standards
EN 10213 · MSS SP-110 · ISO 17292
Country of origin
Spain (Barcelona) · MT factory since 1994
Certifications
CE DVGW WRAS ACS AENOR KIWA SINTEF EAC
