Gate Valves
Threaded brass and flanged cast iron gate valves. Full-port design, rising stem, suitable for water, heating and low-pressure steam.
Full-bore isolation for water, heating and industrial circuits
MT gate valves provide full-bore, low-pressure-drop isolation for service lines that operate either fully open or fully closed. The rising stem visually signals position; the wedge-disc closure delivers leak-tight shut-off when seated. Brass range in CW617N for hydraulic service (DN8 to DN65, threaded F-F BSP per ISO 228) up to PN-16, -20 °C to +120 °C.
Cast iron range (GGG-40 / GG-25) with epoxy coating RAL 5013 and stainless-steel internals (stem, disc) for HVAC, fire protection and large-bore water distribution up to DN300 / PN-16. Flanged connections per EN 1092-2 (PN10/PN16). Designed for infrequent operation — when full flow with minimal pressure drop is required.
Brass

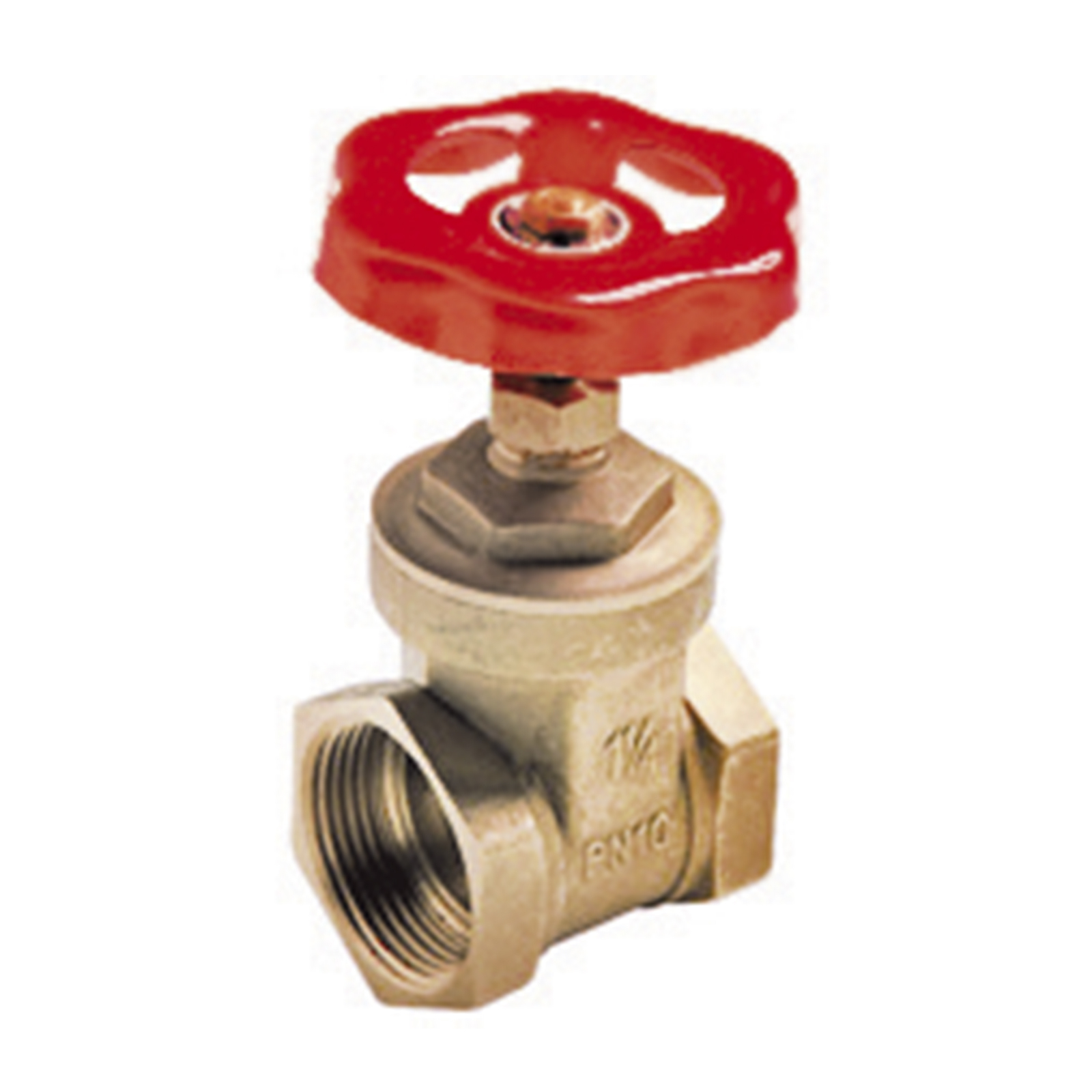

F-F Gate Valve PN10 Standard Flow 1/2"
Brass
F-F Gate Valve PN10 Standard Flow 3/4"
Brass
F-F Gate Valve PN10 Standard Flow 1 1/4"
Brass
F-F Gate Valve PN10 Standard Flow 1 1/2"
Brass
