صمام عدم رجوع
F-F Non-return Valve Light Type With Metal Shutter 1/2”
SKU MT-4215015
AED 94.05 شامل ضريبة القيمة المضافة
● 504 units متوفر · توصيل خلال 48 ساعة في دبي
صُنع في إسبانيا
🔍 Click to zoom
+ Specs
التوافق والشهادات
Tested و approved by the world’s most respected water authorities. شهادات معلَّمة بنجمة carry direct procurement weight in the UAE specifier channel.
Heavy-duty F-F brass non-return valve with metal shutter for reliable backflow prevention in residential و commercial water installations. Forged brass body for high working pressure, robust metal shutter, و threaded female-female ends in BSP standard. Designed و manufactured in Spain since 1994 under ISO 9001 & 14001 certified processes.
القطر الاسمي
DN15 · 1/2"
التوصيل
Female threaded F-F · BSP (ISO 228-1)
Type
صمام رفع / عدم رجوع
مادة الهيكل
Forged brass CW617N (DZR)
مادة الحاجز
معدن (نحاس مع O-ring NBR)
مادة الزنبرك
Stainless steel AISI 304
ضغط التشغيل
PN-16 (16 bar)
نطاق درجة الحرارة
-10°C to +110°C
مناسب لـ
Cold & hot water · Compressed air · Heating circuits
الوزن (للوحدة)
185 g
الرمز الشريطي / EAN
8435319112823
كرتون رئيسي
90 units / box
رمز HS (الجمارك)
8481.30.91
المنشأ
صُنع في إسبانيا
الضمان
2 years against manufacturing defects
مواصفات جاهزة للشراء
Copy this text directly into your project tender, BoQ, or RFQ documentation. Verified to MT manufacturing specifications.
MT Non-Return Valve — Heavy Type, Metal Shutter
Type ........................ MT-4114015
Description ............... F-F threaded brass lift check valve, heavy duty with metal shutter
Nominal size .............. 1/2" (DN15)
Connection ................ Female-Female threaded BSP (ISO 228-1)
Body material ............. Forged brass CW617N (DZR)
Working pressure ........ PN-16 (16 bar maximum)
Temperature ............... -10°C to +110°C
Standard .................... EN 1213, ISO 9001:2015
Origin ........................ Manufactured in Spain (EU)
Manufacturer ............. MT Valves & Fittings, S.L. · Barcelona, Spain
UAE local agent ......... [Authorised distributor name]
Stock ......................... Available ex-stock Dubai (48h Dubai · 24-72h GCC)
Type ........................ MT-4114015
Description ............... F-F threaded brass lift check valve, heavy duty with metal shutter
Nominal size .............. 1/2" (DN15)
Connection ................ Female-Female threaded BSP (ISO 228-1)
Body material ............. Forged brass CW617N (DZR)
Working pressure ........ PN-16 (16 bar maximum)
Temperature ............... -10°C to +110°C
Standard .................... EN 1213, ISO 9001:2015
Origin ........................ Manufactured in Spain (EU)
Manufacturer ............. MT Valves & Fittings, S.L. · Barcelona, Spain
UAE local agent ......... [Authorised distributor name]
Stock ......................... Available ex-stock Dubai (48h Dubai · 24-72h GCC)
الوثائق الفنية
All documents are available in EN, ES و AR. Click to download or request via email.
Certifications & Approvals
This product is certified by the following national و international bodies. All certificates available for download under the Data Sheet tab.
CE
معتمد CE
الاتحاد الأوروبي
ISO
ISO 9001:2015
إدارة الجودة
14K
ISO 14001
البيئي
ACS
ACS
🇫🇷 France · Potable water
DVG
DVGW
🇩🇪 Germany · Gas & water
WRA
WRAS
🇬🇧 UK · BS 6920
AEN
AENOR
Spain
WM
WaterMark
🇦🇺 Australia
UAE Compliance & Local Standards
Ready for UAE market with local compliance pathway و Dubai Municipality (DM) registration in progress.
مطابقة ESMA
✅ ECAS-registered (UAE.S 5009 / IEC equivalent)
بلدية دبي
📋 Registration in progress · expected Q2 2026
ضريبة القيمة المضافة
5% UAE VAT included in retail prices
UAE warranty support
Local technical team in Dubai · 24h response
Customs HS code (UAE)
8481.30.91
إعلان المنشأ
Manufactured in Spain · EU origin · Free Trade Agreement EU-GCC pending
اطّلع العملاء أيضاً على
See all in Brass Check Valves →
صمام كروي

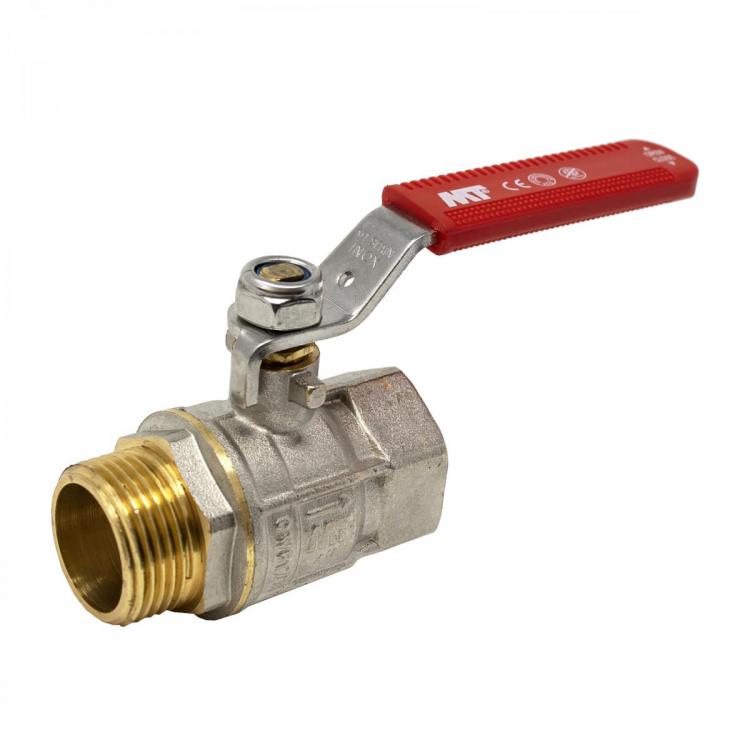

M-F Ball Valve PN-30 Erg. Red Stainless Steel Handle 3/4”
SKU MT-4097020
AED 50.61 شامل ضريبة القيمة المضافة
● 45 units متوفر · توصيل خلال 48 ساعة في دبي
مصفاة Y

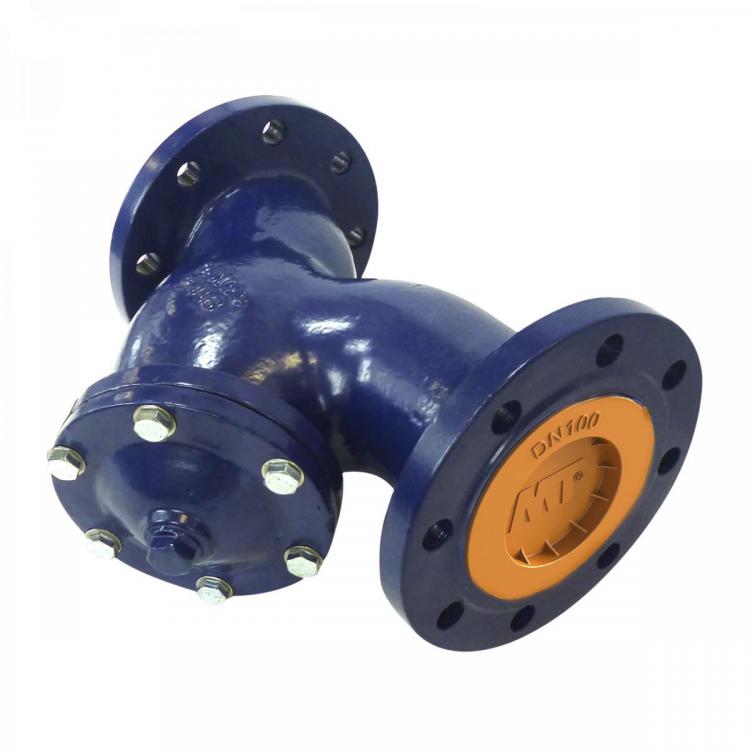

Flanged Cast Iron Y Strainer With Stainless Steel Screen 1.8
